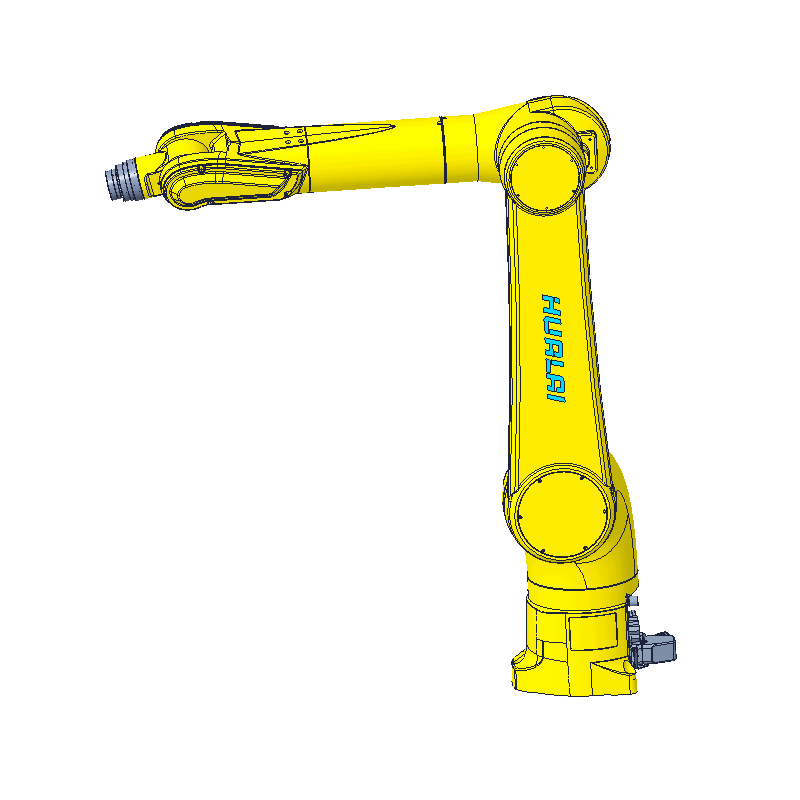

  • Hualai 3-5 KG load six axis robot (three product arm lengths of 550mm, 730mm, 998mm) is a research and development, production, and sales manufacturer of the source robot


    (model)

    HL-YR998

    (number of axles)

    6(axle)

    (structural style)

    (series connection)

    (rated load)

    3KG-5KG

    (repeatability)

    ±0.05mm

    (Activity radius)

    550mm/730mm/998mm

    Maximum operating range)

    A1(axle)

    ±180°

    A2(axle)

    ±120°

    A3(axle)

    ﹢75°-155°

    A4(axle)

    ±180°

    A5(axle)

    ±115°

    A6(axle)

    ±360°

    (maximum speed)

    A1(axle)

    221°/sec

    A2(axle)

    221°/sec

    A3(axle)

    222°/sec

    A4(axle)

    225°/sec

    A5(axle)

    225°/sec

    A6(axle)

    360°/sec

    (ambient temperature)

    -0℃~40℃

    (Body weight)

    ≈50KG-90KG

    (Installation method)

    (Ground installation, bracket installation, inverted installation)
