10-20KG Six Axis Robot

微信二维码 微信扫码咨询

全国咨询服务热线:

13922856097
  • 10-20KG Six Axis Robot
  • 产品介绍
  • 相关产品

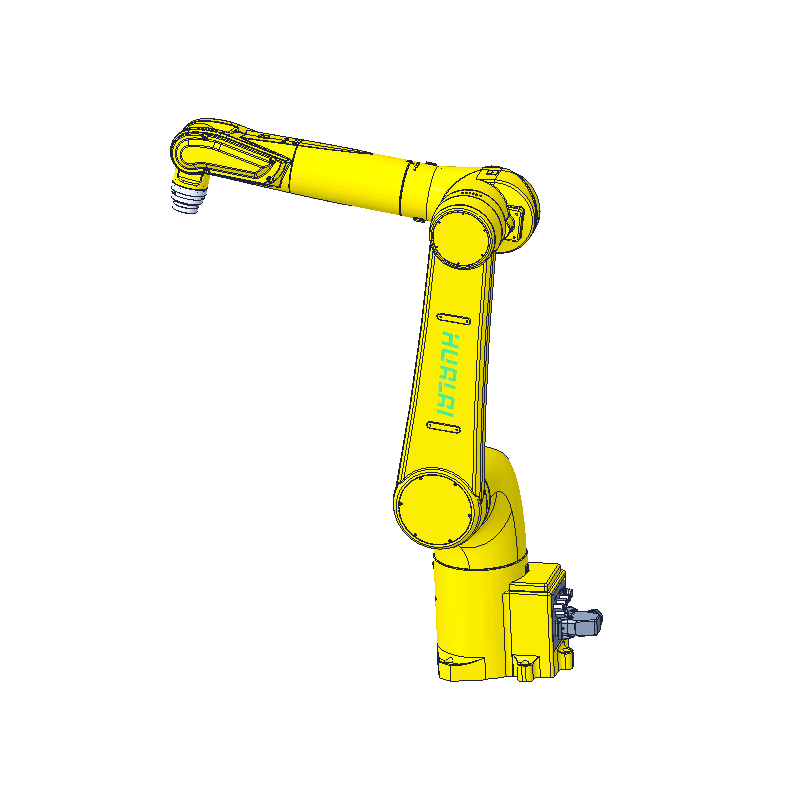

  • 10-20KG Six Axis Robot Hualai 10-20KG Load Six Axis Robot (three products with arm lengths of 1498mm, 1798mm, 1998mm) is a source robot research and development, production, and sales manufacturer.


    (model)

    HL-YR1998

    (number of axles)

    6(axle)

    (structural style)

    (series connection)

    (rated load)

    10KG-20KG

    (repeatability)

    ±0.08mm

    (Activity radius)

    1498mm/1798mm/1998mm

    (Maximum operating range)

    A1(axle)

    ±180°

    A2(axle)

    ±120°

    A3(axle)

    ﹢75°-155°

    A4(axle)

    ±180°

    A5(axle)

    ±115°

    A6(axle)

    ±360°

    (maximum speed)

    A1(axle)

    148°/sec

    A2(axle)

    148°/sec

    A3(axle)

    148°/sec

    A4(axle)

    225°/sec

    A5(axle)

    225°/sec

    A6(axle)

    360°/sec

    (ambient temperature)

    -0℃~40℃

    (Body weight)

    ≈138KG-268KG

    (Installation method)

    (Ground installation, bracket installation, inverted installation)
